规格4000*500mm，容量300L，内胆采用304不锈钢，外胆采用201不锈钢，板材厚度1.2mm，无控制箱，加热带采用条形硅胶板，分2级加热，具有接触面大，升温速度快，热能转换效率高的特点。该设备总功率2000w，安装时配有漏电保护器和接地线，确保使用安全可靠。
Specification 4000 * 500mm, capacity 300L, inner liner made of 304 stainless steel, outer liner made of 201 stainless steel, plate thickness 1.2mm, no control box, heating belt made of strip-shaped silicone plate, divided into 2 levels of heating, with characteristics of large contact surface, fast heating speed, and high thermal energy conversion efficiency. The device has a total power of 2000w and is equipped with leakage protection and grounding wire during installation, ensuring safe and reliable use.
|
成分 |
产品照片 |
参数说明 |
备注 |
|

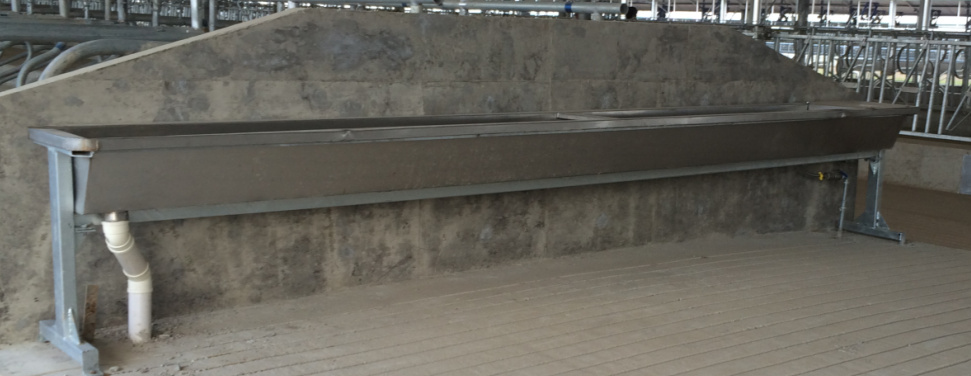

不锈钢水槽 |
|
技术参数：材质：304不锈钢板，板厚≥1.2mm。长度4.0m，上宽50cm，下宽20cm；深30cm，带排水孔。横向支架采用镀锌管焊接，可拆卸， |
保证6头奶牛同时饮水，水槽一端接水流量≥120升/分钟。水槽下方安装带有70mm排水孔的连续横梁，排水孔位于水槽一端并安装斜坡。 |
|

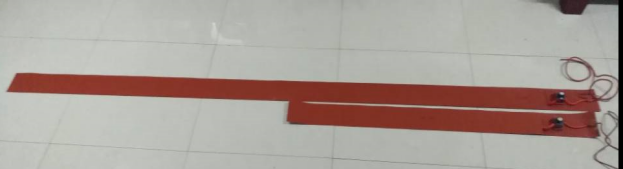

硅胶加热条 |
|
电加热，温度可控，采用位于水槽外侧的硅胶加热板 |
有效保证水槽整体均匀、快速加热。 |
|

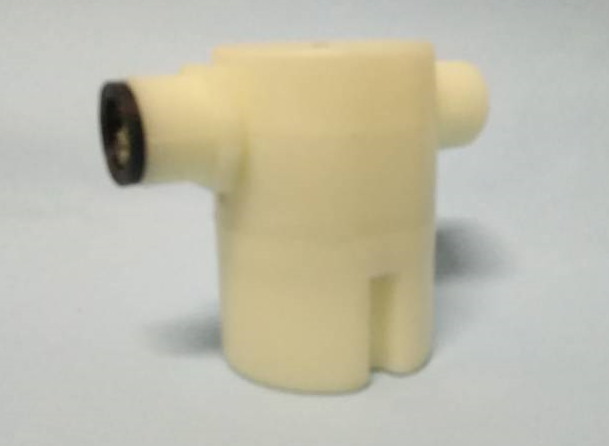

定制饮用水箱液位控制器 |
|
内置高品质液位控制阀，可精确控制液位高度，液位控制阀保修一年，使用寿命长达3年。 |
内置液位控制阀，可有效防止奶牛饮水、戏水时水面晃动幅度大造成浮球阀损坏。 |
|
Composition |
Product Photo |
Parameter Description |
notes |
|
Stainless Steel S Sink |
|
Technical Parameters: Material: 304 stainless steel plate, thickness ≥ 1.2mm. Length 4.0m, upper width 50cm, lower width 20cm; depth 30cm, with drainage hole. The horizontal bracket is welded with galvanized pipes and is detachable. |
It can ensure that 6 cows drink water at the same time. One end of the sink is connected with a water flow rate of ≥ 120 liters per minute. A continuous beam with a 70mm drainage hole is installed under the sink. The drainage hole is located at one end of the sink and a slope is installed. |
|
Silicone Heating Strip |
|
Electric heating, temperature - controllable, using a silicone heating plate located on the outside of the sink |
It can effectively ensure that the whole sink is heated evenly and quickly. |
|
Customized Drinking Water Tank Level Controller |
|
Built - in high - quality liquid level control valve, which can accurately control the liquid level height. The liquid level control valve is guaranteed for one year and has a service life of up to 3 years. |
The built - in liquid level control valve can effectively prevent the damage of the float valve caused by the large fluctuation of the water surface when cows drink or play in the water. |
